Total Solar Reflectance Report
CICP_ Total Solar reflectance
A :- Panels preparation
1 – Water base paint using CICP pigments made on high-speed stirrer.
2 – Pigmentation is kept 35 % of overall formulation.
3 – Panels are made by applying paint on cement substrate. Panels air dried and then
sent for testing.
B : – Machine Details
Perkin Elmer UV-Vis-NIR
Machine used – Lambda 1050 +
Wavelength range – 200 – 2500 nm
% Total Solar reflectance range – 700 to 1500 nm
A :- Panels preparation
1 – Water base paint using CICP pigments made on high-speed stirrer.
2 – Pigmentation is kept 35 % of overall formulation.
3 – Panels are made by applying paint on cement substrate. Panels air dried and then
sent for testing.
B : – Machine Details
Perkin Elmer UV-Vis-NIR
Machine used – Lambda 1050 +
Wavelength range – 200 – 2500 nm
% Total Solar reflectance range – 700 to 1500 nm

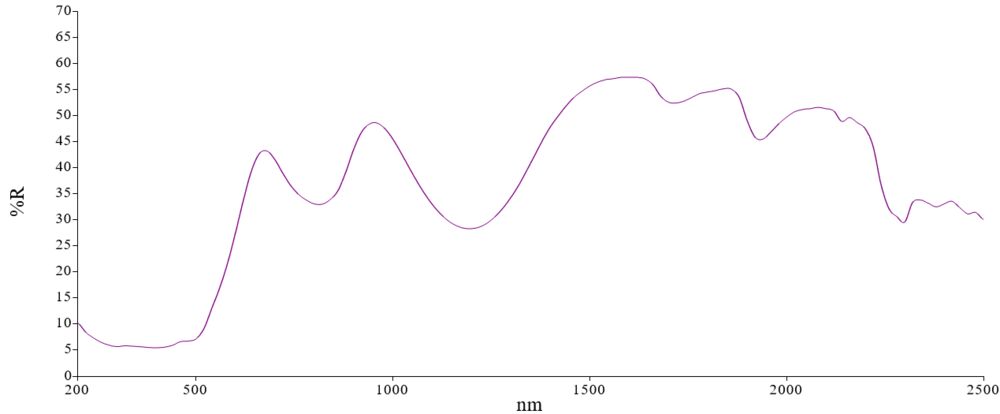

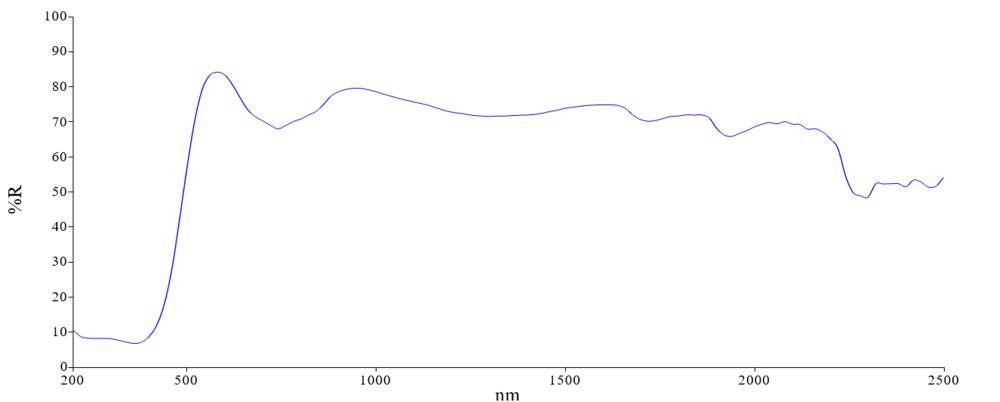

Sudatherm Buff Yellow 6431C – (PBr 24)
| CI Name | Product Name | % TSR |
| PY 53 | Sudatherm Yellow 6406C | 73.96 |
| CI Name | Product Name | % TSR |
|---|---|---|
| PBr 24 | Sudatherm Buff Yellow 6431C | 78.11 |

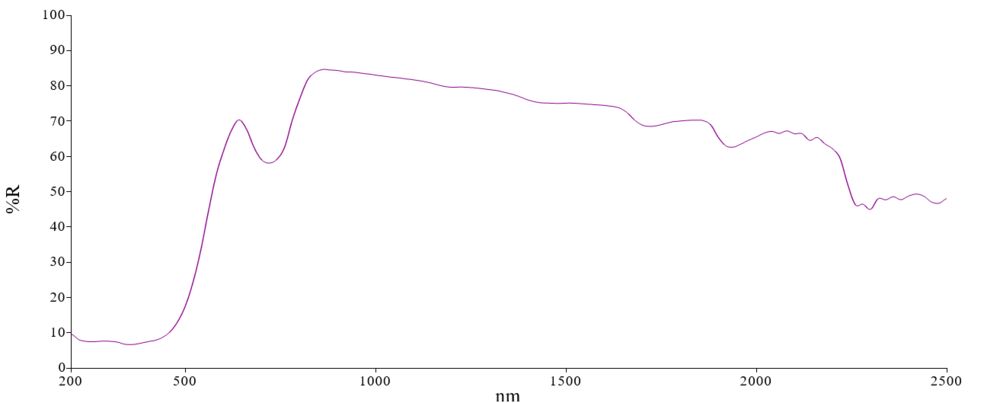

Sudatherm Tan 6416C – (PY 119)
